Adding Perfection To The Industrial Processes With Single Roll Crusher
Ecoman is one of the top most-preferred crusher manufacturing, selling and distribution company, which makes efficient and exclusively customized single roll crushers that best suit the special requirements of varied industrial applications.
Alongside the double roll crusher machines that Ecoman manufactures, the single roll crusher machines also add a great value towards enhancing the scope for better production in various industries like \metallurgy, mining, building material and energy.
We manufacture and distribute best quality single roll crusher as well as an eminent double roll crushers of two types - double toothed roll crushers and smooth double roll crushers along with sinter crushers.

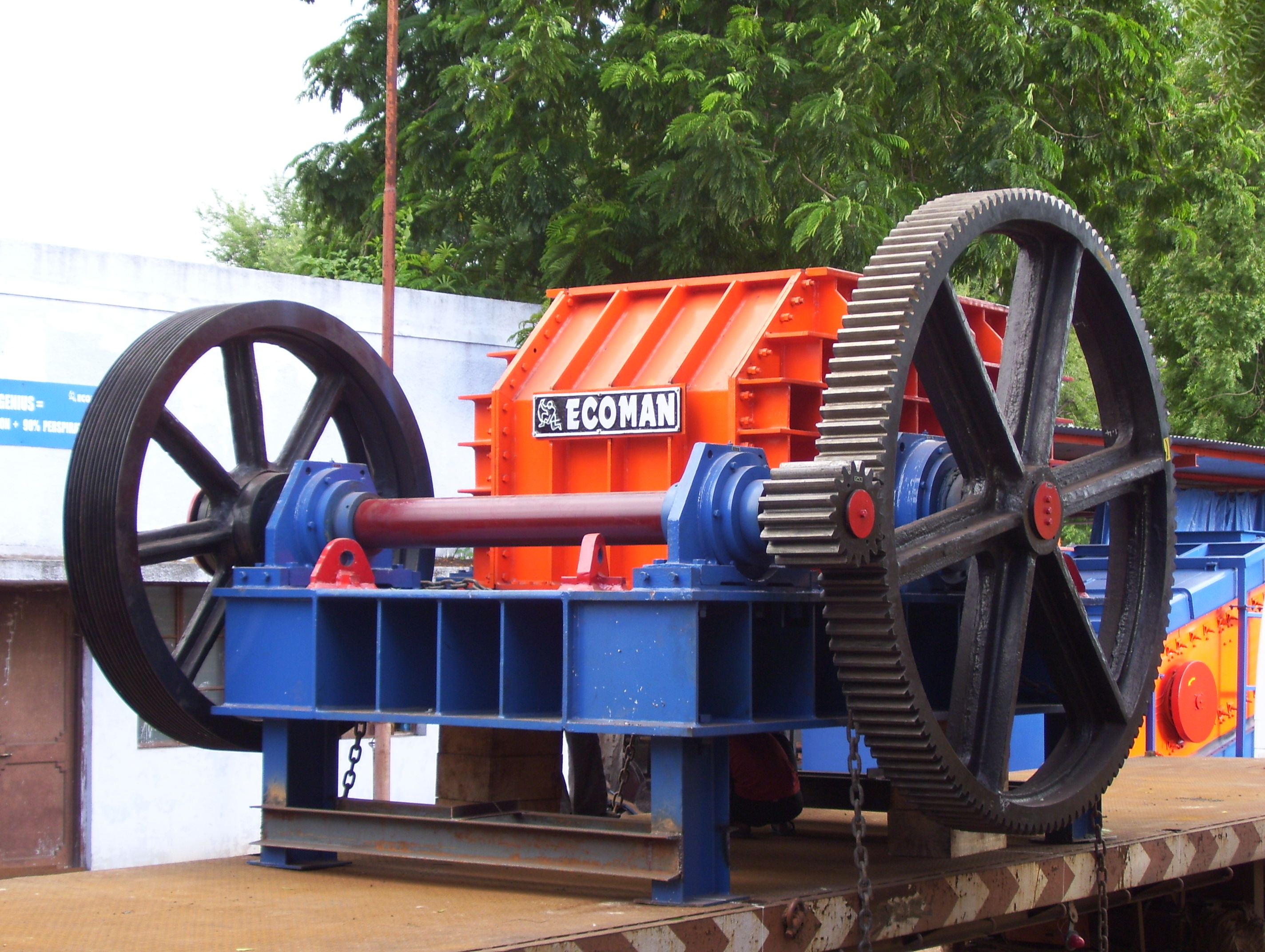

The single toothed roll crusher that we manufacture is actually a rotary roller which consists of a large tooth and also a crushing plate which is adjustable according to the need and requirement.
The material that is fed into the single roll crusher is smashed first and then pressed from inside of the single tooth roll breaker followed by passing it through the braking cavity after which the rotary roller shifts it to the space amidst the tooth roller and the crushing plate which break the material into desired shapes.
Specifications of the single roll crusher
Sizes available : Diameter 500 mm x Width 400 mm to Diameter 1600 mm to Width 2800 mm
Maximum Feed Size : 2000 mm
Capacity (TPH) : 2000
Our single roll crusher has a utility space in industries like
ROM coal
Mine refuse
Shale
Slate
Gypsum
Bauxite
Salt
Soft shale
Cinders
Brick
Phosphate
Clean coal
Frozen coal
Lime
Coke
Wet and Sticky feeds
Salient features of our single roll crusher
Fabricated steel base constructed frame
Renewable, high quality steel wear liners based Hopper and frame reinforcement
Replaceable, reversible and renewable crushing plates reinforcement
Driven by an electric motor and V-belt drive arrangement
Automatic lubrication option available
For best single roll crushes for any industrial application, get in touch with us at info@ecomanindia.com
